PI74STX1G08TEX
Diodes Incorporated

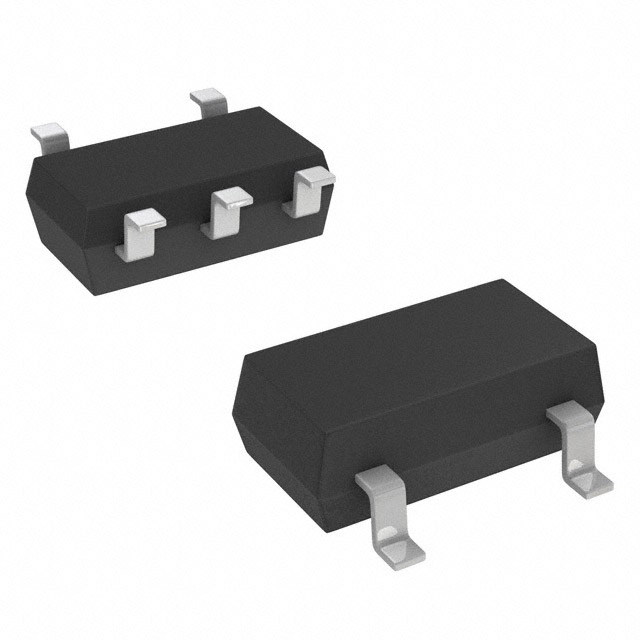

Images are for reference only.
See Product Specifications for product details.
Buy PI74STX1G08TEX with confidence from FCT ELECTRONICS, 1 Year Warranty
See Product Specifications for product details.
Buy PI74STX1G08TEX with confidence from FCT ELECTRONICS, 1 Year Warranty
Request a Quote
Dowload PI74STX1G08TEX Datasheet| Part Number | PI74STX1G08TEX |
|---|---|
| Manufacturer | Diodes Incorporated |
| Description | IC GATE AND 1CH 2-INP SOT23-5 |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| In Stock |
||||||
| Reference Price (In US Dollars) | Get a quote | |||||
- Product parameter
- Related products
- Related news
Product parameter
| Part Number | PI74STX1G08TEX |
|---|---|
| Manufacturer | Diodes Incorporated |
| Product Category | Logic - Gates and Inverters |
| Description | IC GATE AND 1CH 2-INP SOT23-5 |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 4421 pcs |
| Datasheet | PI74STX1G08TEX.pdf |
| Voltage - Supply | 1.65 V ~ 5.5 V |
| Supplier Device Package | SOT-23-5 |
| Series | 74STX |
| Packaging | Tape & Reel (TR) |
| Package / Case | SC-74A, SOT-753 |
| Operating Temperature | -40°C ~ 85°C |
| Number of Inputs | 2 |
| Number of Circuits | 1 |
| Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Max Propagation Delay @ V, Max CL | 3.3ns @ 5V, 50pF |
| Logic Type | AND Gate |
| Logic Level - Low | - |
| Logic Level - High | - |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Features | - |
| Detailed Description | AND Gate IC 1 Channel SOT-23-5 |
| Current - Quiescent (Max) | 2µA |
| Current - Output High, Low | 32mA, 32mA |
| Base Part Number | 74STX1G08 |
FCT ELECTRONICS is a Reliable Stocking Distributor of Electronic Components. We specialize in all Diodes Incorporated series electronic components. We have 4421 pcs of Diodes IncorporatedPI74STX1G08TEX in stock available now. Request a quote from electronics components distributor at FCT ELECTRONICS, our sales team will contact you within 24 hours.
RFQ Email: info@fct-elec.com
RFQ Email: info@fct-elec.com
