L9805E
STMicroelectronics

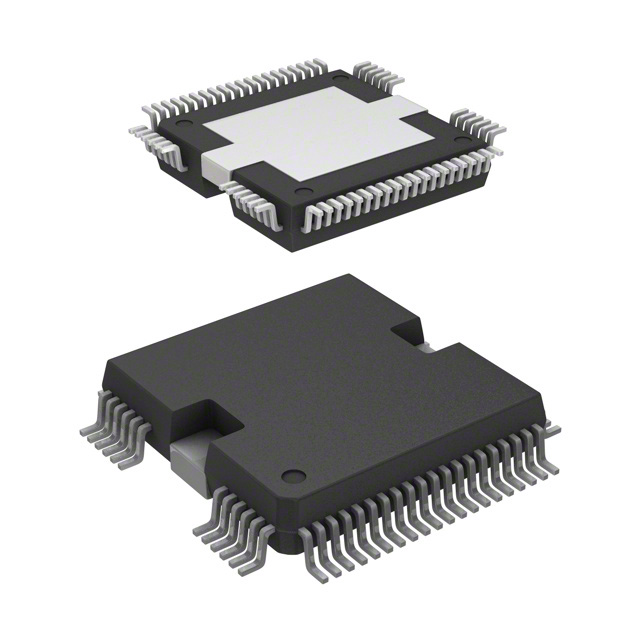

Images are for reference only.
See Product Specifications for product details.
Buy L9805E with confidence from FCT ELECTRONICS, 1 Year Warranty
See Product Specifications for product details.
Buy L9805E with confidence from FCT ELECTRONICS, 1 Year Warranty
Request a Quote
Dowload L9805E Datasheet| Part Number | L9805E |
|---|---|
| Manufacturer | STMicroelectronics |
| Description | IC MOTOR DRIVER SER 64HIQUAD |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| In Stock |
||||||
| Reference Price (In US Dollars) | Get a quote | |||||
- Product parameter
- Related products
- Related news
Product parameter
| Part Number | L9805E |
|---|---|
| Manufacturer | STMicroelectronics |
| Product Category | PMIC - Motor Drivers, Controllers |
| Description | IC MOTOR DRIVER SER 64HIQUAD |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 12417 pcs |
| Datasheet | L9805E.pdf |
| Voltage - Supply | 6.4 V ~ 18 V |
| Voltage - Load | 6.4 V ~ 18 V |
| Technology | DMOS |
| Supplier Device Package | 64-HiQUAD |
| Step Resolution | - |
| Series | - |
| Packaging | Tray |
| Package / Case | 64-BQFP Exposed Pad |
| Output Configuration | Half Bridge (2) |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Motor Type - Stepper | - |
| Motor Type - AC, DC | Brushed DC |
| Moisture Sensitivity Level (MSL) | 3 (168 Hours) |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Interface | Serial |
| Function | Driver - Fully Integrated, Control and Power Stage |
| Detailed Description | Motor Driver DMOS Serial 64-HiQUAD |
| Current - Output | - |
| Base Part Number | L9805 |
| Applications | General Purpose |
FCT ELECTRONICS is a Reliable Stocking Distributor of Electronic Components. We specialize in all STMicroelectronics series electronic components. We have 12417 pcs of STMicroelectronicsL9805E in stock available now. Request a quote from electronics components distributor at FCT ELECTRONICS, our sales team will contact you within 24 hours.
