DMT10H015LFG-7
Diodes Incorporated

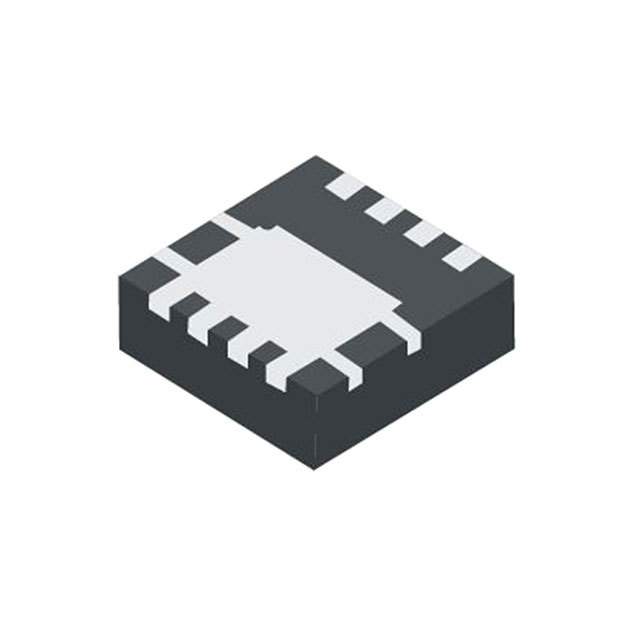

Images are for reference only.
See Product Specifications for product details.
Buy DMT10H015LFG-7 with confidence from FCT ELECTRONICS, 1 Year Warranty
See Product Specifications for product details.
Buy DMT10H015LFG-7 with confidence from FCT ELECTRONICS, 1 Year Warranty
Request a Quote
Dowload DMT10H015LFG-7 Datasheet| Part Number | DMT10H015LFG-7 |
|---|---|
| Manufacturer | Diodes Incorporated |
| Description | MOSFET N-CH 100V 10A |
| Lead Free Status / RoHS Status | Contains lead / RoHS Compliant |
| In Stock |
||||||
| Reference Price (In US Dollars) | Get a quote | |||||
- Product parameter
- Related products
- Related news
Product parameter
| Part Number | DMT10H015LFG-7 |
|---|---|
| Manufacturer | Diodes Incorporated |
| Product Category | Transistors - FETs, MOSFETs - Single |
| Description | MOSFET N-CH 100V 10A |
| Lead Free Status / RoHS Status | Contains lead / RoHS Compliant |
| Quantity Available | 135186 pcs |
| Datasheet | DMT10H015LFG-7.pdf |
| Vgs(th) (Max) @ Id | 3.5V @ 250µA |
| Vgs (Max) | ±20V |
| Technology | MOSFET (Metal Oxide) |
| Supplier Device Package | PowerDI3333-8 |
| Series | - |
| Rds On (Max) @ Id, Vgs | 13.5 mOhm @ 20A, 10V |
| Power Dissipation (Max) | 2W (Ta), 35W (Tc) |
| Packaging | Tape & Reel (TR) |
| Package / Case | 8-PowerWDFN |
| Other Names | DMT10H015LFG-7DITR |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Lead Free Status / RoHS Status | Contains lead / RoHS Compliant |
| Input Capacitance (Ciss) (Max) @ Vds | 1871pF @ 50V |
| Gate Charge (Qg) (Max) @ Vgs | 33.3nC @ 10V |
| FET Type | N-Channel |
| FET Feature | - |
| Drive Voltage (Max Rds On, Min Rds On) | 6V, 10V |
| Drain to Source Voltage (Vdss) | 100V |
| Detailed Description | N-Channel 100V 10A (Ta), 42A (Tc) 2W (Ta), 35W (Tc) Surface Mount PowerDI3333-8 |
| Current - Continuous Drain (Id) @ 25°C | 10A (Ta), 42A (Tc) |
FCT ELECTRONICS is a Reliable Stocking Distributor of Electronic Components. We specialize in all Diodes Incorporated series electronic components. We have 135186 pcs of Diodes IncorporatedDMT10H015LFG-7 in stock available now. Request a quote from electronics components distributor at FCT ELECTRONICS, our sales team will contact you within 24 hours.
